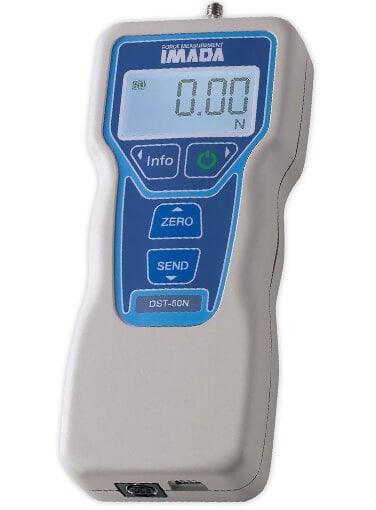

The Imada DST Digital Force Gauge are simple-to-use basic gauges featuring user-friendly menu operation. Selections including unit and measuring mode can be locked to prevent accidental changes.The Image DST large backlit LCD display can be configured in basic format to show value, unit and measuring mode or multi-line format to display peak and real time values simultaneously. Additional features include reversible display and high/low setpoints with OK indicator for Go/No Go testing.The gauges have a 30,000/sec sampling rate. Collect the data via USB or RS-232 connections with the Force Logger or SW-1X software (Both Optional)

Please click on the links below for additional information on the models available for this product:

Models Available	Price
Imada DST-0.4 Digital Force Gauge DST, 7 oz / 200 g / 2 N Capacity - DST-0.4A	774.00
Imada DST-1 Digital Force Gauge DST, 1 lb/ 500 g / 5 N Capacity - DST-1A	774.00
Imada DST-11 Digital Force Gauge DST, 11 lb/ 5 Kg / 50 N Capacity - DST-11A	774.00
Imada DST-110 Digital Force Gauge DST, 110 lbs / 50 Kg / 500 N Capacity - DST-110A	774.00
Imada DST-220 Digital Force Gauge DST, 220 lbs / 100 Kg / 1000 N Capacity - DST-220A	1,099.00
Imada DST-4 Digital Force Gauge DST, 4.4 lb/ 2 Kg / 20 N Capacity - DST-4A	774.00
Imada DST-44 Digital Force Gauge DST, 44 lb / 20 Kg / 200 N Capacity - DST-44A	774.00
