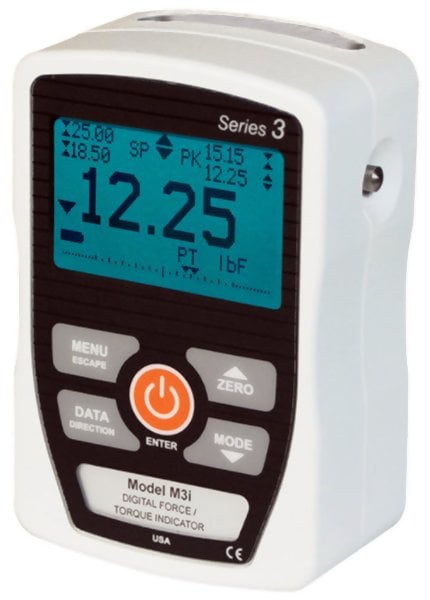

Mark-10 M3I Digital Force and Torque Indicator

Price: $ 675.00

Mark-10 Series 3I Force and Torque Indicator
2,000 Hz sampling rate

0.2% accuracy

USB output

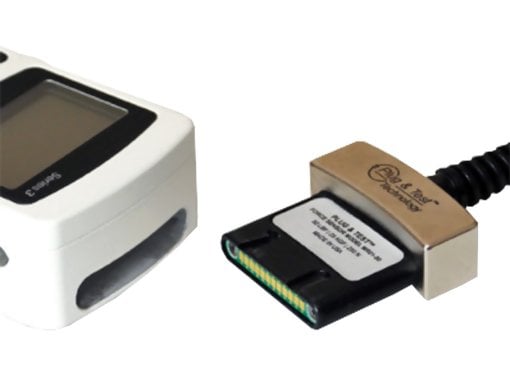

The Mark-10 Series 3I Force and Torque Indicator is designed to work with a wide range of Mark-10 remote force and torque sensors (see page 3). With exclusive Plug & Test technology, all calibration and configuration data is saved within the sensors smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force / torque indicator.

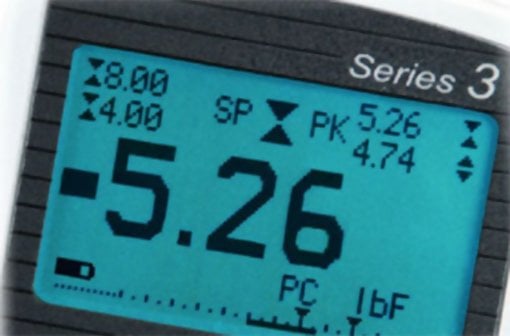

The Mark-10 Series 3I Force and Torque Indicator shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.

The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

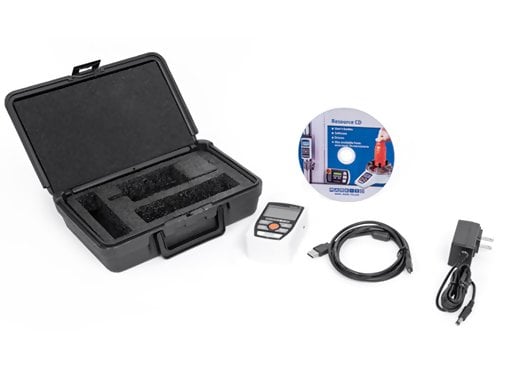

Kit Contents

  • Mark-10 Series 3I Force and Torque Indicator
  • Carrying case
  • USB cable
  • AC adapter
  • Battery
  • Resource CD
  • Three (3) year warranty


  • Interchangeable force and torque sensors through Plug & Testtechnology
  • High-speed 2,000 Hz sampling rate
  • Peak readings and set points always displayed
  • Ultra-compact size
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Programmable set points with pass/fail audible and visual indicators
  • USB data output
  • Live load bar graph with set point markers
  • Configurable audio alarms and key tones
  • Programmable auto-shutoff
  • Configurable audio alarms and key tones
  • Battery or AC operation
  • MESURTM Lite data collection software included
  • CE mark


Accuracy0.2% of full scale + sensor
Sampling rate2,000 Hz
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery lifeBacklight on:up to 7 hours of continuous use
Backlight off:up to 24 hours of continuous use
USB OutputConfigurable to 115,200 baud
Configurable settingsDigital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload150% of full scale (display shows OVER at 110% and above)
Weight0.7 lb (0.3 kg)
Environmental requirements40 100F, max. 96% humidity, non-condensing
Warranty3 years (see individual statement for further details)

Related Products

Mesurgauge Load & Travel Analysis Software

  • Windows 7 Compatible


Plug & TestTM Adapter

  • Software configuration utility is included, for easy programming of sensor capacity, resolution, and identification number


Mark-10 Series-3I Force and Torque Indicator - Instruction Manual
Mark-10 Series-3I Force and Torque Indicator - Data Sheet
Mark-10 Digital Force Gauge Series I - Comparison Chart

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Mark-10 M3I Digital Force and Torque Indicator $675.00
Accessories Price
15-1004 MESURgauge Software $560.00
08-1026 Spare rechargeable battery $20.00
AC1030 Spare AC adapter, 110V $45.00
AC1031 Spare AC adapter, 220V EUR $45.00
AC1032 Spare AC adapter, 220V UK $45.00
AC1035 Spare AC adapter, 220V AUS $45.00
AC1008 Stand, table top $170.00
SVC014 Upgrade service BGI style connector to Plug and Test connector $295.00
