Shimpo TRC-2 Digital Torque Tester, Range 0-17.70 lb·in / 0.020 - 2.000 Nm / 2.0 - 200.0 Ncm / 0-20.39 kgcm



Price: $ 795.00

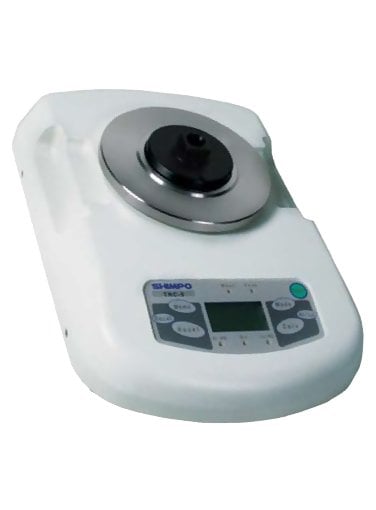

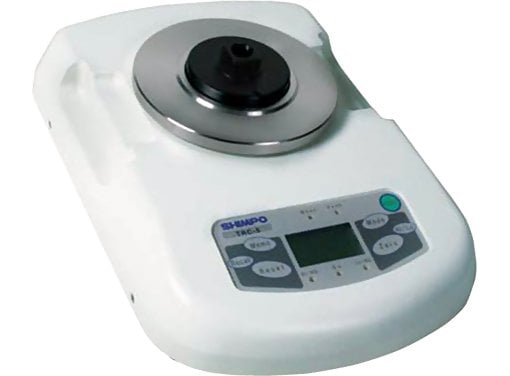

Shimpo TRC-2 Digital Torque Tester
Precise 0.5% F.S. 1 digit accuracy ensures exact results

The SHIMPO TRC torque checker is a user friendly instrument for calibrating or measuring torque values. A single button process does it all. Zero, Test, Store, and repeat. In addition to Average, Maximum, Minimum, and Peak values, the TRC features Red/Green/Red LED's (HI-GO-LO) and audible alarm. It's wide 3,000 data points storage capacity makes large batch testing possible, insuring overall product quality.

The TRC torque Checker is USB capable for easy PC/Software interface. Combined with the free DigiTorque_TRC software, graphical display and statistical analysis are performed and collected automatically.

The TRC is a portable device powered with internal rechargeable batteries or through a universal AC adapter/charger. The TRC's small foot print saves valuable lab space. It's low profile, (3.82") rugged design, and NIST traceable calibration certificate promotes proper calibration procedures, insuring overall product quality.


line
Features
line

  • Precise 0.5% F.S. 1 digit accuracy ensures exact results
  • Variety of applications met with ranges from 17.7 inlb (2 Nm) all the way to 88.5 inlb (10 Nm)
  • Memory function allows convenient storage of up to 3000 readings for later retrieval
  • Large, easy to read LCD displays torque values in four selectable engineering units
  • Durable, cast-aluminum heavy-duty construction withstands demanding wear and tear
  • PC connectivity with USB interface and free Digitorq software enables data analysis and graphing on Microsoft Excel
  • Truly portable with compact, light-weight design and internal, rechargeable batteries
  • Recharge batteries with included 120/240V AC adapter/charger or utilize adapter for continuous use
  • Change measuring modes to capture Average, Maximum or Minimum values in both clockwise (CW) & counterclockwise (CCW) directions
  • Speed up large batch tests with the integral Red/Green LED comparator that responds in accordance to pre-programmed tolerances
  • Includes Factory Certificate, CE Approval and 1 Year Warranty!


line
Specifications
line

Accuracy0.5% / F.S.
DisplayMain display: 4-digit LCD display, Character height 0.5 (12 mm); Sub display: 3-digit, 0.29 (7 mm)
Comparator DisplayLED indicates NG, OK, with adjustable alarm
Display Update TimeSelect from 0.125 sec (8 times/sec), 0.25 sec (4 times/sec), 0.5 sec (2 times/sec), 1 sec (1 time/sec)
Measuring ModeMEAN: displays torque value in real time; PEAK: displays peak torque value
Overload120% of full scale
Sampling100 Hz
MemoryTotal 3,000 data (10 sets with 300 data point per set)
Data OutputUSB1.1 (data download by special software)
PowerNiMH rechargeable battery, and AC adapter 100-240vac, 50/60 Hz
Operating Environment32 -104F (0 - 40C) 35 - 85%RH (non condensing)

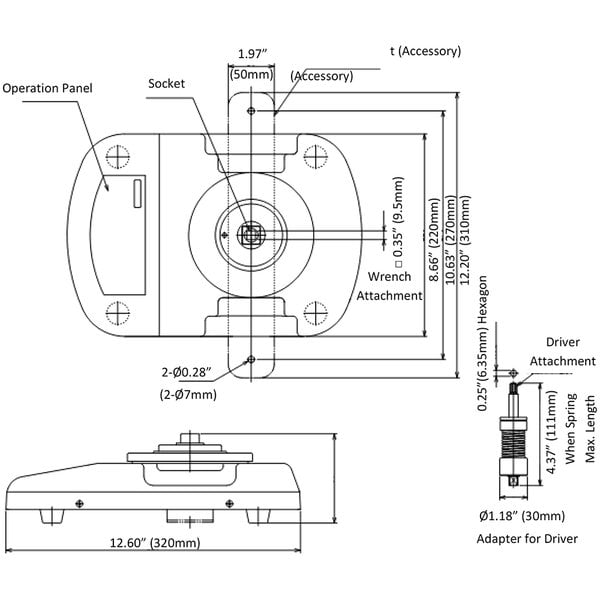

Dimensions12.60 x 8.66 x 3.82 (320 x 220 x 97 mm)
Product WeightApprox. 13.25 lb (6.0 kg)
Package WeightApprox. 16.2 lb (7.35 kg)
SoftwareDigiTorque TRC Free Download from www.shimpoinst.com
Included AccessoriesTorque adapter for driver, AC adapter/charger, USB cable, Mounting bracket, bolts for mounting bracket (2 pcs)
CertificationsCE
Warranty1 year


line
Ranges
line

ModelCapacity
TRC-217.70 inlb | 20.39 kgcm | 200.0 Ncm | 2.000 N-m
TRC-544.25 inlb | 50.99 kgcm | 500.0 Ncm | 5.000 N-m
TRC-1088.5 inlb | 102.0 kgcm | 1000 Ncm | 10.00 N-m


line
Downloads
line

Shimpo TRC-2 Digital Torque Tester - Data Sheet
Shimpo TRC-2 Digital Torque Tester- Instruction Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Shimpo TRC-2 Digital Torque Tester, Range 0-17.70 lb·in / 0.020 - 2.000 Nm / 2.0 - 200.0 Ncm / 0-20.39 kgcm $795.00
