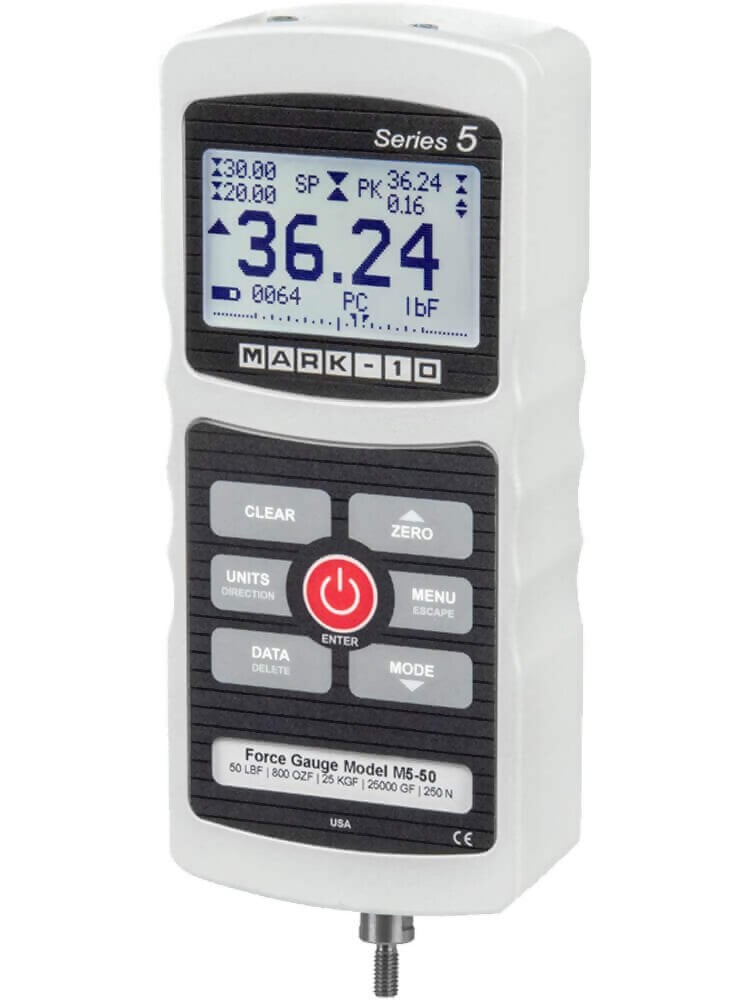

Mark-10 Series 5 Advanced Digital Force Gauge
Mark-10 Series 5 Advanced Digital Force Gauge
Price: $ 1,040.25 up to $ 1,420.25
Mark-10 Series 5 Advanced Digital Force Gage, Mitutoyo, and analog outputs
7,000 Hz peak sampling rate
0.1% accuracy
1,000 point data memory and statistics
Reversible display
The Series-5 Advanced Digital Force Gage is designed for tension and compression force testing in quality control, manufacturing, and R&D areas. A range of capacities from 0.12 lb to 500 lb (0.5 N to 2500 N) is available to address numerous applications in the medical device, pharmaceutical, packaging, consumer products, automotive, aerospace, and other industries. The force gauges feature an industry-leading peak sampling rate of 7,000 Hz, producing accurate results even for quick-action tests. Accuracy is approximately 0.1% of full scale approximately 1 digit, and resolution is 1/5000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force. The Series 5 averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. The housing may be reversed in order for the load cell shaft to be oriented up or down, while the display and buttons remain upright.

Please click on the links below for additional information on the models available for this product:
Models Available Price
Mark-10 M5-012 Advanced Digital Force Gauge Series 5, 0.12 lbf / 50 G / 0.5 N Capacity
1,182.75
Mark-10 M5-025 Advanced Digital Force Gauge Series 5, 0.25 lbf / 100 G / 1 N Capacity
1,182.75
Mark-10 M5-05 Advanced Digital Force Gauge Series 5, 0.5 lbf / 250 G / 2.5 N Capacity
1,182.75
Mark-10 M5-10 Advanced Digital Force Gauge Series 5, 10 lbf / 5 Kg / 50 N Capacity
1,040.25
Mark-10 M5-100 Advanced Digital Force Gauge Series 5, 100 lbf / 50 Kg / 500 N Capacity
1,040.25
Mark-10 M5-1000 Advanced Digital Force Gauge Series 5, 1000 lbf / 500 Kg / 5000 N Capacity
1,420.25
Mark-10 M5-2 Advanced Digital Force Gauge Series 5, 2 lbf / 1 Kg / 10 N Capacity
1,040.25
Mark-10 M5-20 Advanced Digital Force Gauge Series 5, 20 lbf / 10 Kg / 100 N Capacity
1,040.25
Mark-10 M5-200 Advanced Digital Force Gauge Series 5, 200 lbf / 100 Kg / 1000 N Capacity
1,182.75
Mark-10 M5-2000 Advanced Digital Force Gauge Series 5, 2000 lbf / 1000 Kg / 10000 N Capacity
1,420.25
Mark-10 M5-300 Advanced Digital Force Gauge Series 5, 300 lbs / 150 kg / 1500 N Capacity
1,182.75
Mark-10 M5-5 Advanced Digital Force Gauge Series 5, 5 lbf / 2.5 Kg / 25 N Capacity
1,040.25
Mark-10 M5-50 Advanced Digital Force Gauge Series 5, 50 lbf / 25 Kg / 250 N Capacity
1,040.25
Mark-10 M5-500 Advanced Digital Force Gauge Series 5, 500 lbf / 250 Kg / 2500 N Capacity
1,182.75
Mark-10 M5-750 Advanced Digital Force Gauge Series 5, 750 lbs / 375 kg / 3750 N Capacity
1,420.25
