Complete List of Digital Force Gages

Digital Force Gages are precision measuring instrument used across all industries to measure the force during a push or pull test. Digital Force Gauges are basically handheld instruments that contains a load cell, electronic part, software and a display. Get the best prices and expedited delivery on Digital Force Gages. We offer DS2 Digital Force Gage, MG Digital Force Gage, FTS-X Force Test System, and much more.

For a complete list of features and accessories, please check all our Digital Force Gage models below. If you are having difficulties finding the product you need, feel free to contact us and a product specialist will be happy to assist you.

BlueForce Impact Force Gauge
BlueForce Impact Force Gauge
Price:$2,750.00
Impact Force Gauge
For use with automatic/power operated doors/gates
2000N Capacity

The BlueForce Impact Force Gauge is a force gauge for automatic/power operated doors/gates, which complies with standards EN 12445 and EN 12453. BlueForce: one of a kind, with dual Bluetooth and USB interface. Thanks to the PC-LINK mode, Blue Force can also be linked up to a handheld computer or a PC during testing, allowing immediate viewing of the graph and values, as a well as immediate access to test results. The comfortable handle, in an accessible and ergonomic position, ensures a steady grip and matchless manoeuverability; the handle is also easy to remove (using the key supplied) and can be rotated by 180 (i.e. turned upside down).



Please click on the links below for additional information on the models available for this product:
Models Available Price
BlueForce Impact Digital Force Gauges, Cap. 2000 N, Complete Kit
2,750.00

FGE Hand-Held Digital Force Gage
FGE Hand-Held Digital Force Gage
Price: $ 620.00
Digital Force Gauge
Accuracy 0.2%
8 Ranges up to 100lbs
Measure force in lbs, Kgs or N
Reversible display
The FGE Digital Force Gauges is a microprocessor-controlled force gauge that precisely measure push/pull forces up to 100 pounds with an accuracy of 0.2%. They are extremely compact for convenient hand-held use and include provisions for mounting on a test stand for bench top use.

Please click on the links below for additional information on the models available for this product:
Models Available Price
FGE-0.5X Hand-held Digital Force Gauge, Cap. 8 Oz / 200 G / 2 N, Complete Kit, 110V
620.00
FGE-0.5X Hand-held Digital Force Gauge, Cap. 8 Oz / 200 G / 2 N, Complete Kit, 220V
620.00
FGE-100X Hand-held Digital Force Gauge, Cap. 100 lbf / 50 Kg / 500 N, Complete Kit, 110V
620.00
FGE-100X Hand-held Digital Force Gauge, Cap. 100 lbf / 50 Kg / 500 N, Complete Kit, 220V
620.00
FGE-10X Hand-held Digital Force Gauge, Cap. 10 lbf / 5 Kg / 50 N, Complete Kit, 110V
620.00
FGE-10X Hand-held Digital Force Gauge, Cap. 10 lbf / 5 Kg / 50 N, Complete Kit, 220V
620.00
FGE-1X Hand-held Digital Force Gauge, Cap. 16 Oz / 500 G / 5 N, Complete Kit, 110V
620.00
FGE-1X Hand-held Digital Force Gauge, Cap. 16 Oz / 500 G / 5 N, Complete Kit, 220V
620.00
FGE-20X Hand-held Digital Force Gauge, Cap. 20 lbf / 10 Kg / 100 N, Complete Kit, 110V
620.00
FGE-20X Hand-held Digital Force Gauge, Cap. 20 lbf / 10 Kg / 100 N, Complete Kit, 220V
620.00
FGE-2X Hand-held Digital Force Gauge, Cap. 2 lbf / 1000 G / 5 N, Complete Kit, 110V
620.00
FGE-2X Hand-held Digital Force Gauge, Cap. 2 lbf / 1000 G / 5 N, Complete Kit, 220V
620.00
FGE-50X Hand-held Digital Force Gauge, Cap. 50 lbf / 20 Kg / 200 N, Complete Kit, 110V
620.00
FGE-50X Hand-held Digital Force Gauge, Cap. 50 lbf / 20 Kg / 200 N, Complete Kit, 220V
620.00
FGE-5X Hand-held Digital Force Gauge, Cap. 5 lbf / 2 Kg / 20 N, Complete Kit, 110V
620.00
FGE-5X Hand-held Digital Force Gauge, Cap. 5 lbf / 2 Kg / 20 N, Complete Kit, 220V
620.00

FGE-HX High Capacity Digital Force Gauge
FGE-HX High Capacity Digital Force Gauge
Price: $ 795.00
High Capacity Digital Force Gauge
Accuracy 0.2%
3 Ranges up to 1000 lbs
Measure force in lbs, Kgs or N
Reversible display
RS-232C, Digimatic and Analog outputs optional

TheFGE series is a precision instrument thatoffers the same user-friendly features of our popular , but in an extremely heavy-duty case, allowing the gauges to handle larger capacities from 0 to 1000 pounds. Two knurled steel handles are provided for hand operation and a hanger is included which enables each gauge to be used as a scale. The FGE-HX / FGV-HX is supplied as a complete kit including force gauge, AC adapter/charger, 2 handles, inch adapter and attachments (flat head, hook, chisel, notched head, cone head, extension rod) RS232 CABLE (FGV-HX Only) in a foam fitted plastic carrying case.

This microprocessor-controlled Digital Force Gauge offers the same user-friendly features of our popular FGE/FGV series, but in an extremely heavy-duty case, allowing the gauges to handle larger capacities from 0 to 1000 pounds.



Please click on the links below for additional information on the models available for this product:
Models Available Price
FGE-200HX High Capacity Digital Force Gauges, Cap. 200 lbf / 100 Kg / 1000 N, Complete Kit, 110V
795.00
FGE-200HX High Capacity Digital Force Gauges, Cap. 200 lbf / 100 Kg / 1000 N, Complete Kit, 220V
795.00
FGE-500HX High Capacity Digital Force Gauges, Cap. 500 lbf / 250 Kg / 2500 N, Complete Kit, 110V
795.00
FGE-500HX High Capacity Digital Force Gauges, Cap. 500 lbf / 250 Kg / 2500 N, Complete Kit, 220V
795.00
FGV-500HX High Capacity Digital Force Gauges with RS232 & Analog Output, Cap. 500 lbf / 250 Kg / 2500 N, Complete Kit, 110V
945.00
FGV-500HX High Capacity Digital Force Gauges with RS232 & Analog Output, Cap. 500 lbf / 250 Kg / 2500 N, Complete Kit, 220V
945.00


FGV-HXY High Capacity Digital Force Gauge
FGV-HXY High Capacity Digital Force Gauge
Price: $ 1,095.00 up to $ 1,795.00
Digital Force Gaugewith USB Output

Reversible Keypad and Display

1000 Hz Sample Rate, provides more accurate results
NIST-Traceable Certificate of Calibration not included (sold separately)
The FGV-HXY is a precision instrument that offers an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Models are available in 500 lb. or 1000 lb. ranges providing necessary performance for high capacity testing.

The 180 reversible display combined with the adjustable force direction and dual labeled keypad enable these units to excel in both compression and tension applications in any direction. FGV models possess onboard statistical calculations provide fast access to maximum, minimum, average and standard deviation data. Models includes software and RS-232 cable allowing further data analysis on a PC. The FGV-HXYs 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C, USB and analog outputs provide maximum communication flexibility.

Please click on the links below for additional information on the models available for this product:
Models Available Price
FGV-1000HXY High Capacity Digital Force Gauge with USB Output, Capacity 1000 lb / 453.6 kg / 4448 N
1,795.00
FGV-500HXY High Capacity Digital Force Gauge with USB Output, Capacity 500 lb / 250 kg / 25000 N
1,095.00
NIST-Traceable Calibration Certificate for FGE/FGV HX and HXY Gauges
180.00

FGV-XY Digital Force Gage
FGV-XY Digital Force Gage
Price: $ 795.00 up to $ 845.00
Digital Force Gage with USB Output
Reversible Keypad and Display
9 Ranges up to 200lbs
1000 Hz Sample Rate, provides more accurate results
USB, RS-232, Analog Outputs
The FGV-XY Digital Force Gage is a precision instrument that delivers industry-leading value with an extensive list of features including USB output, reversible display and a rugged metal housing. Each gauge is supplied as a complete kit with several screw-on adapters providing a complete force testing instrument for use in a wide variety of industries. All models include built-in memory for 1000 values, easily downloaded via the USB data output to a PC using the software & cable supplied at no charge.

Force values can be transferred in real time continuously or batch downloaded after testing is complete. In addition, RS-232C and analog outputs are also supplied providing the FGV-XY with maximum flexibility for data transfer and recording. Additionally, measurement statistics are automatically calculated and stored and can be recalled to the display for viewing or can be downloaded. Statistics include maximum, minimum, average and standard deviation.

The FGV-XY provides is suitable for use in numerous industries & applications including incoming quality inspection, finished goods testing, R&D as well as on wire pull testing, wire crimps, trigger pull, brake pedal, aerospace, ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.




Please click on the links below for additional information on the models available for this product:
Models Available Price
FGV-0.5XY Digital Force Gauge with USB Output, Cap. 0.5 lbf / 200 G / 2 N
795.00
FGV-100XY Digital Force Gauge with USB Output, Cap. 100 lbf / 50 Kg / 500 N
795.00
FGV-10XY Digital Force Gauge with USB Output, Cap. 10 lbf / 5 Kg / 50 N
795.00
FGV-1XY Digital Force Gauge with USB Output, Cap. 1 lbf / 500 G / 5 N
795.00
FGV-200XY Digital Force Gauge with USB Output, Cap. 200 lbf / 100 Kg / 1000 N
845.00
FGV-20XY Digital Force Gauge with USB Output, Cap. 20 lbf / 10 Kg / 100 N
795.00
FGV-2XY Digital Force Gauge with USB Output, Cap. 2 lbf / 1000 G / 10 N
795.00
FGV-50XY Digital Force Gauge with USB Output, Cap. 50 lbf / 20 Kg / 200 N
795.00
FGV-5XY Digital Force Gauge with USB Output, Cap. 5 lbf / 2 Kg / 20 N
795.00

FMI-S10 Digital Force Gauge
FMI-S10 Digital Force Gauge
Price: $ 549.00 up to $ 795.00
Solar Powered Digital Force Gauge - Basic Model

3 Ranges up to 110 lbs / 50 Kg / 500 N

IP65 Splash-proof Housing
The FMI-S10 is based on their own power supply by the solar cell especially for mobile use in quality control, for quick and easy measurements in industrial environments and also well suited for outdoor applications.

The extremely robust sensor module is integrated in the housing such that an optimal overload protection is accomplished by up to 500%. The measured values ​​are in a big screen displayed either in the SI unit of Newton or in units of weight.

The force or pressure for train is on the M6​​-wave measurement, standard adapters are included. For hand-held measurements, additional handles are mounted on the housing. For this purpose, as well as for the test stand fixture, inner thread provided on the housing.

The simple application of the meter FMI-S10 in combination with a high accuracy and affordability are hallmarks of this instrument.

Please click on the links below for additional information on the models available for this product:
Models Available Price
FMI-S10B5 Solar Powered Digital Force Gauge Basic Model, Capacity 50 N
549.00
FMI-S10C1 Solar Powered Digital Force Gauge Basic Model, Capacity 100 N
549.00
FMI-S10C5 Solar Powered Digital Force Gauge Basic Model, Capacity 500 N
549.00
FMI-S10K1 Solar Powered Digital Force Gauge Basic Model, Capacity 1000 N
549.00
FMI-S10K5 Solar Powered Digital Force Gauge Basic Model, Capacity 5000 N
795.00

FMI-S20 Digital Force Gauge
FMI-S20 Digital Force Gauge
Price: $ 695.00 up to $ 965.00
Solar Powered Digital Force Gauge

5 Ranges up to 1100 lbs / 500 Kg / 5000 N
The FMI-S20 is based on their own power supply by the solar cell especially for mobile use in quality control and for the measurement of tear or rupture forces in the industrial environment suited.

The extremely robust sensor module is integrated in the housing such that an optimal overload protection is accomplished by up to 500%. The measured values ​​are in a big screen displayed either in the SI unit of Newton or in units of weight.

The force or pressure for train is on the M6​​-wave measurement, standard adapters are included. For test stand mounting threads are provided on the housing.

The simple application of the meter FMI-S20 in combination with a high accuracy and affordability are hallmarks of this instrument.

Please click on the links below for additional information on the models available for this product:
Models Available Price
FMI-S20B5 Solar Powered Digital Force Gauge, Capacity 50 N
695.00
FMI-S20C1 Solar Powered Digital Force Gauge, Capacity 100 N
695.00
FMI-S20C5 Solar Powered Digital Force Gauge, Capacity 500 N
695.00
FMI-S20K1 Solar Powered Digital Force Gauge, Capacity 1000 N
695.00
FMI-S20K5 Solar Powered Digital Force Gauge, Capacity 5000 N
965.00

FMI-S30 Digital Force Gauge with USB Interface
FMI-S30 Digital Force Gauge with USB Interface
Price: $ 965.00 up to $ 1,245.00
Solar Powered Digital Force Gauge with USB Data Output

7 Ranges up to 1100 lbs / 500 Kg / 5000 N
The FMI-S30 is self-powered using a built-in solar cell with continuous re-charging even indoors. No batteries or AC-Adapter is ever required. Simply keep this device uncovered and exposed to ambient lighting and the internal battery will remain charged. Designed for use as a stand-alone handheld force measuring devise or used together with a mechanical or motorized test stand as part of complete force measuring system.

The FMI-S30 is available in seven (7) different measuring ranges from 0-5 N (1 Lb, 500g) up to 0-5000 N (1000 Lbs 500Kg). It features a cast aluminum housing making it extremely rugged and suitable for use in the toughest production and laboratory environments with an overload protection up to 500%. The FMI-S30 includes user-set high and low limits, memory and USB output. A large LCD Display shows the measured force value (Peak, or continuous) along with the unit of measure (Lbs, Kg or Newtons). It is supplied as a complete kit with various grip adapters including a chisel, flat head, hook, notched-head and shaft extension all supplied in a foam-fitted carrying case. Optional accessories include a Traceable Calibration Certificate.

Please click on the links below for additional information on the models available for this product:
Models Available Price
FMI-S30A5 Solar Powered Digital Force Gauge with USB Data Output, 5 N Capacity
965.00
FMI-S30B1 Solar Powered Digital Force Gauge with USB Data Output, 10 N Capacity
965.00
FMI-S30B5 Solar Powered Digital Force Gauge with USB Data Output, 50 N Capacity
965.00
FMI-S30C1 Solar Powered Digital Force Gauge with USB Data Output, 100 N Capacity
965.00
FMI-S30C5 Solar Powered Digital Force Gauge with USB Data Output, 500 N Capacity
965.00
FMI-S30K1 Solar Powered Digital Force Gauge with USB Data Output, 1000 N Capacity
965.00
FMI-S30K5 Solar Powered Digital Force Gauge with USB Data Output, 5000 N Capacity
1,245.00

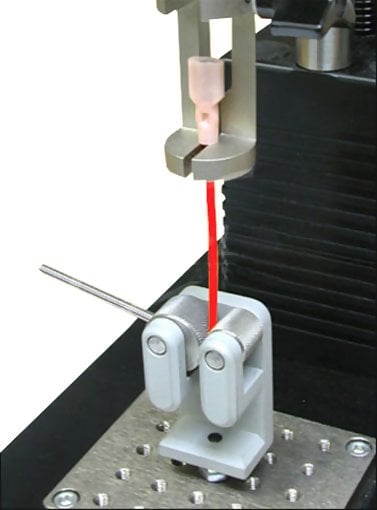

Force Gauge Applications
Force Gauge Applications

High Capacity Motorized Test Stand


ModelForce Gauge Applications



Please click on the links below for additional information on the models available for this product:
Models Available Price

FTS-HD High Capacity Force Test System
FTS-HD High Capacity Force Test System
Price: $ 3,185.00
High Capacity Force Test System
1000lb Capacity
Includes Gauge and Test Stand

The FTS-HD High Capacity Force Test System is a high capacity force test system engineered for precise & repeatable measurements of push or pull forces up to 1000lbs. A smooth operating turn-wheel provides a precise 0.1" travel per revolution. The FTS-HD heavy duty construction provides repeatable and reliable testing for many years. The FTS-HD features adjustable height ranges, customizable lengths (for different sample sizes) and an option for a digital length/height meter. The FTS-HD Force Test System includes the FGV-1000HX Digital Force Gauge and FGS-1000H Mechanical Hand-Wheel Test Stand. The system is designed for precise, accurate measurements.



Please click on the links below for additional information on the models available for this product:
Models Available Price
FTS-HD2 High Capacity Force Test System (FGV-1000HXY + FGS-1000H)
3,185.00

FTS-X Force Test System
FTS-X Force Test System
Price: $ 1,650.00
Force Test System with USB Data Output
Available in 5 Ranges up to 110 lbs.
Includes Gauge and Test Stand
The FTS-X Force Test System is a complete Test System designed for precision measurement of push / pull force on a wide variety of applications. FTS-X offers USB data output and along with a complete software package to record and analyze your test data.


Please click on the links below for additional information on the models available for this product:
Models Available Price
FTS-100X Force Test Systemwith USB Data Output, Capacity 100 lbf / 50 Kg / 500 N
1,650.00
FTS-10X Force Test System with USB Data Output, Capacity 10 lbf / 5 Kg / 50 N
1,650.00
FTS-20X Force Test Systemwith USB Data Output, Capacity 20 lbf / 10 Kg / 100 N
1,650.00
FTS-50X Force Test Systemwith USB Data Output, Capacity 50 lbf / 20 Kg / 200 N
1,650.00
FTS-5X Force Test System with USB Data Output, Capacity 5 lbf / 2 Kg / 20 N
1,650.00

Imada DS2 Digital Force Gage
Imada DS2 Digital Force Gage
Price: $595.00 to $845.00
Imada Digital Force Gauge with Output
Accuracy 0.2%
Measure force in lbs, Kgs or N
7 Ranges up to 220 lbs
RS-232C, Digimatic and Analog outputs
Reversible display

The Imada DS2 digital force gauge is a precision instrument that features a large, easy-to-read LCD display and simple push-button operation. An ergonomic metal housing protects the highly accurate loadcell and electronics in tough industrial environments.When measuring, units of measure and a tension or compression icon are displayed. A battery icon indicates the NI-MH batteries are low. If an overload occurs the display will flash to warn you.

When measuring, units of measure and a tension or compression icon are displayed. A battery icon indicates the NI-MH batteries are low. If an overload occurs the display will flash to warn you.

If desired, you can program high/low setpoints to enable Go/NoGo testing using the LCD indicators. Standard outputs (RS-232C, Digimatic, and 1VDC analog) enable you to acquire data for permanent record.

All DS2 gauges can run on the internal NI-MH batteries or the AC adapter/charger. An optional handle to facilitate the measurement of heavy loads is also available.



Please click on the links below for additional information on the models available for this product:
Models Available Price
Imada DS2-0.4 Digital Force Gauge with Output, Cap. 7 Oz / 200 G / 2 N, 110V
595.00
Imada DS2-0.4 Digital Force Gauge with Output, Cap. 7 Oz / 200 G / 2 N, 220V
595.00
Imada DS2-1 Digital Force Gauge with Output, Cap. 18 Oz / 500 G / 5 N, 110V
595.00
Imada DS2-1 Digital Force Gauge with Output, Cap. 18 Oz / 500 G / 5 N, 220V
595.00
Imada DS2-11 Digital Force Gauge with Output, Cap. 11 lbf / 5 Kg / 50 N, 110V
595.00
Imada DS2-11 Digital Force Gauge with Output, Cap. 11 lbf / 5 Kg / 50 N, 220V
595.00
Imada DS2-110 Digital Force Gauge with Output, Cap. 110 lbf / 50 Kg / 500 N, 110V
595.00
Imada DS2-110 Digital Force Gauge with Output, Cap. 110 lbf / 50 Kg / 500 N, 220V
595.00
Imada DS2-220 Digital Force Gauge with Output, Cap. 220 lbf / 100 Kg / 1000 N, 110V
845.00
Imada DS2-220 Digital Force Gauge with Output, Cap. 220 lbf / 100 Kg / 1000 N, 220V
845.00
Imada DS2-4 Digital Force Gauge with Output, Cap. 4.4 lbf / 2 Kg / 20 N, 110V
595.00
Imada DS2-4 Digital Force Gauge with Output, Cap. 4.4 lbf / 2 Kg / 20 N, 220V
595.00
Imada DS2-44 Digital Force Gauge with Output, Cap. 44 lbf / 20 Kg / 200 N, 110V
595.00
Imada DS2-44 Digital Force Gauge with Output, Cap. 44 lbf / 20 Kg / 200 N, 220V
595.00

Imada ZT-LM Series Digital Force Gauge with Button Sensor
Imada ZT-LM Series Digital Force Gauge with Button Sensor
Price: $ 1,455.00 up to $ 1,865.00
Imada Remote Compression Sensor Digital Force Gaugewith Output
Accuracy 0.2%
11 Ranges up to 4,400 lbs
Measure force in lbs, Kgs or N

The Z2S-LM are high performance digital force gauges that feature a separate sensor that is ideal for confined spaces or difficult to reach measurements. All standard LM sensors are less than 1.5" in both diameter and height and measure compression only. A standard six foot cable connects the gauge to the sensor. The Z2S-LM unit offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.Store up to 1,000 values in memory, which can be displayed or transmitted using the RS-232C port. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons.



Please click on the links below for additional information on the models available for this product:
Models Available Price
ZTA-LM-0.4 Digital Advanced Force Compression Gauge with Button Sensor - 7 ozf Capacity
1,555.00
ZTA-LM-1 Digital Advanced Force Compression Gauge with Button Sensor - 18 ozf Capacity
1,555.00
ZTA-LM-11 Digital Advanced Force Compression Gauge with Button Sensor - 11 lbf Capacity
1,555.00
ZTA-LM-1100 Digital Advanced Force Compression Gauge with Button Sensor - 1100 lbf Capacity
1,755.00
ZTA-LM-220 Digital Advanced Force Compression Gauge with Button Sensor - 220 lbf Capacity
1,755.00
ZTA-LM-2200 Digital Advanced Force Compression Gauge with Button Sensor - 2200 lbf Capacity
1,865.00
ZTA-LM-4 Digital Advanced Force Compression Gauge with Button Sensor - 4.4 lbf Capacity
1,555.00
ZTA-LM-44 Digital Advanced Force Compression Gauge with Button Sensor - 44 lbf Capacity
1,555.00
ZTA-LM-4400 Digital Advanced Force Compression Gauge with Button Sensor - 4400 lbf Capacity
1,865.00
ZTA-LM-550 Digital Advanced Force Compression Gauge with Button Sensor - 550 lbf Capacity
1,755.00
ZTS-LM-0.4 Digital Force Compression Gauge with Button Sensor - 7 ozf Capacity
1,455.00
ZTS-LM-1 Digital Force Compression Gauge with Button Sensor - 18 ozf Capacity
1,455.00
ZTS-LM-11 Digital Force Compression Gauge with Button Sensor - 11 lbf Capacity
1,455.00
ZTS-LM-110 Digital Force Compression Gauge with Button Sensor - 110 lbf Capacity
1,455.00
ZTS-LM-1100 Digital Force Compression Gauge with Button Sensor - 1100 lbf Capacity
1,655.00
ZTS-LM-220 Digital Force Compression Gauge with Button Sensor - 220 lbf Capacity
1,655.00
ZTS-LM-2200 Digital Force Compression Gauge with Button Sensor - 2200 lbf Capacity
1,765.00
ZTS-LM-4 Digital Force Compression Gauge with Button Sensor - 4.4 lbf Capacity
1,455.00
ZTS-LM-44 Digital Force Compression Gauge with Button Sensor - 44 lbf Capacity
1,455.00
ZTS-LM-4400 Digital Force Compression Gauge with Button Sensor - 4400 lbf Capacity
1,765.00
ZTS-LM-550 Digital Force Compression Gauge with Button Sensor - 550 lbf Capacity
1,655.00

M5-2-COF Coefficient of Friction Gauge
M5-2-COF Coefficient of Friction Gauge
Price: $ 1,295.00 up to $ 2,550.00
Calculates static and kinetic coefficients of friction

Configurable sled weight

1,000-point data memory and statistics
The M5-2-COF is an integral part of a COF testing system, typically including a motorized test stand and COF fixture. With a capacity of 2 lbF [10 N], the gauge can be used to measure friction for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients are displayed on the back lit LCD, and are calculated from a user-programmable sled weight.

Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. Configurable password protects against unauthorized changes to settings.

The M5-2-COF may also be used for a number of common tension and compression testing applications.

The M5-2-COF includes MESURTMLite data acquisition software. MESURTMLite tabulates continuous or single point data. Data saved in the gauge's memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.


Please click on the links below for additional information on the models available for this product:
Models Available Price
M5-2-COF Coefficient of Friction Gauge, Complete Kit, 110V
1,295.00
M5-2-COF Coefficient of Friction Gauge, Complete Kit, 220V
1,295.00
M5-2-COF-K1 COF Coefficient of Friction Gauge with G1086 Coefficient of Friction Fixture, 110V
2,550.00
M5-2-COF-K1 COF Coefficient of Friction Gauge with G1086 Coefficient of Friction Fixture, 220V
2,550.00

MG Digital Force Gage - Push Pull Gage
MG Digital Force Gage - Push Pull Gage
Price: $ 535.00 up to $ 665.00
Economical Digital Force Gage - Push/Pull Gage
Accuracy 0.5%
11 Ranges up to 500 lbs
Measure force in lbs, Kgs or N
3 Year Warranty

TheMG Series Digital Force Gage is a precision instrument that measures push pull forces as low as 0.0001 lb with an accuracy of0.5% full scale 1 digit. These Digital Force Gauges areextremely compact for convenient hand-held use and include accessories for a variety of common applications. All MG models are supplied in a rugged metal housing, providing trouble free use in the toughest production, field and laboratory environments.



Please click on the links below for additional information on the models available for this product:
Models Available Price
MG012 Economical Digital Force Gauge - Push Pull Gauge, Cap. 0.12 lbf / 50 G / 0.5 N, Complete Kit, 110V
665.00
MG012 Economical Digital Force Gauge - Push Pull Gauge, Cap. 0.12 lbf / 50 G / 0.5 N, Complete Kit, 220V
665.00
MG025 Economical Digital Force Gauge - Push Pull Gauge, Cap. 0.25 lbf / 100 G / 1 N, Complete Kit, 110V
665.00
MG025 Economical Digital Force Gauge - Push Pull Gauge, Cap. 0.25 lbf / 100 G / 1 N, Complete Kit, 220V
665.00
MG05 Economical Digital Force Gauge - Push Pull Gauge, Cap. 0.5 lbf / 250 G / 2.5 N, Complete Kit, 110V
665.00
MG05 Economical Digital Force Gauge - Push Pull Gauge, Cap. 0.5 lbf / 250 G / 2.5 N, Complete Kit, 220V
665.00
MG10 Economical Digital Force Gauge - Push Pull Gauge, Cap. 10 lbf / 5 Kg / 50 N, Complete Kit, 110V
535.00
MG10 Economical Digital Force Gauge - Push Pull Gauge, Cap. 10 lbf / 5 Kg / 50 N, Complete Kit, 220V
535.00
MG100 Economical Digital Force Gauge - Push Pull Gauge, Cap. 100 lbf / 50 Kg / 500 N, Complete Kit, 110V
535.00
MG100 Economical Digital Force Gauge - Push Pull Gauge, Cap. 100 lbf / 50 Kg / 500 N, Complete Kit, 220V
665.00
MG2 Economical Digital Force Gauge - Push Pull Gauge, Cap. 2 lbf / 1 Kg / 10 N, Complete Kit, 110V
535.00
MG2 Economical Digital Force Gauge - Push Pull Gauge, Cap. 2 lbf / 1 Kg / 10 N, Complete Kit, 220V
535.00
MG20 Digital Force Gauge - Push Pull Gauge, Cap. 20 lbf / 10 Kg / 100 N, Complete Kit, 110V
535.00
MG20 Digital Force Gauge - Push Pull Gauge, Cap. 20 lbf / 10 Kg / 100 N, Complete Kit, 220V
665.00
MG200 Economical Digital Force Gauge - Push Pull Gauge, Cap. 200 lbf / 100 Kg / 1000 N, Complete Kit, 110V
665.00
MG200 Economical Digital Force Gauge - Push Pull Gauge, Cap. 200 lbf / 100 Kg / 1000 N, Complete Kit, 220V
665.00
MG5 Economical Digital Force Gauge - Push Pull Gauge, Cap. 5 lbf / 2.5 Kg / 25 N, Complete Kit, 110V
535.00
MG5 Economical Digital Force Gauge - Push Pull Gauge, Cap. 5 lbf / 2.5 Kg / 25 N, Complete Kit, 220V
665.00
MG50 Economical Digital Force Gauge - Push Pull Gauge, Cap. 50 lbf / 25 Kg / 250 N, Complete Kit, 110V
535.00
MG50 Economical Digital Force Gauge - Push Pull Gauge, Cap. 50 lbf / 25 Kg / 250 N, Complete Kit, 220V
535.00
MG500 Economical Digital Force Gauge - Push Pull Gauge, Cap. 500 lbf / 250 Kg / 2500 N, Complete Kit, 110V
665.00
MG500 Economical Digital Force Gauge - Push Pull Gauge, Cap. 500 lbf / 250 Kg / 2500 N, Complete Kit, 220V
665.00

Series 3i Digital Force Gauge / Torque Indicator
Series 3i Digital Force Gauge / Torque Indicator
Price: $ 575.00
Remote Sensor Force / Torque Display
2,000 Hz sampling rate
0.2% accuracy
USB output
The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors (see page 3). With exclusive Plug & Test technology, all calibration and configuration data is saved within the sensors smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force / torque indicator.

The 3i shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.

The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.


Please click on the links below for additional information on the models available for this product:
Models Available Price
M3I Digital Force Gauge / Torque Indicator, 110V
575.00
M3IA Digital Force Gauge / Torque Indicator, 220V Australia
575.00
M3IE Digital Force Gauge / Torque Indicator, 220V Europe
575.00
M3IU Digital Force Gauge / Torque Indicator, 220V UK
575.00

Series 4 Digital Force Gauge with Output
Series 4 Digital Force Gauge with Output
Price: $ 845.00 up to $ 995.00
Digital Force Gauges with USB Ouput & Software
3,000 Hz peak sampling rate
0.2% accuracy
50 point data memory and statistics
3 Year Warranty
The Series-4 Digital Force Gauge with Output is designed for tension and compression force testing in numerous applications across virtually every industry. The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is 0.2% of full scale 1 digit, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 50 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.

Series 4 gauges include MESUR Lite data acquisition software. MESUR Lite tabulates continuous or single point data from Series 5 and 4 gauges. Data saved in the gauges memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.



Please click on the links below for additional information on the models available for this product:
Models Available Price
M4-012 Advanced Digital Force Gauge with Output, Cap. 0.12 lbf / 50 G / 0.5 N 110V
995.00
M4-012 Advanced Digital Force Gauge with Output, Cap. 0.12 lbf / 50 G / 0.5 N, 220V
995.00
M4-025 Advanced Digital Force Gauge with Output, Cap. 0.25 lbf / 100 G / 1 N, 110V
995.00
M4-025 Advanced Digital Force Gauge with Output, Cap. 0.25 lbf / 100 G / 1 N, 220V
995.00
M4-05 Advanced Digital Force Gauge with Output, Cap. 0.5 lbf / 250 G / 2.5 N, 110V
995.00
M4-05 Advanced Digital Force Gauge with Output, Cap. 0.5 lbf / 250 G / 2.5 N, 220V
995.00
M4-10 Advanced Digital Force Gauge with Output, Cap. 10 lbf / 5 Kg / 50 N, 110V
845.00
M4-10 Advanced Digital Force Gauge with Output, Cap. 10 lbf / 5 Kg / 50 N, 220V
845.00
M4-100 Advanced Digital Force Gauge with Output, Cap. 100 lbf / 50 Kg / 500 N, 110V
845.00
M4-100 Advanced Digital Force Gauge with Output, Cap. 100 lbf / 50 Kg / 500 N, 220V
845.00
M4-2 Advanced Digital Force Gauge with Output, Cap. 2 lbf / 1 Kg / 10 N, 110V
845.00
M4-2 Advanced Digital Force Gauge with Output, Cap. 2 lbf / 1 Kg / 10 N, 220V
845.00
M4-20 Advanced Digital Force Gauge with Output, Cap. 20 lbf / 10 Kg / 100 N, 110V
845.00
M4-20 Advanced Digital Force Gauge with Output, Cap. 20 lbf / 10 Kg / 100 N, 220V
845.00
M4-200 Advanced Digital Force Gauge with Output, Cap. 200 lbf / 100 Kg / 1000 N , 110V
995.00
M4-200 Advanced Digital Force Gauge with Output, Cap. 200 lbf / 100 Kg / 1000 N, 220V
995.00
M4-5 Advanced Digital Force Gauge with Output, Cap. 5 lbf / 2.5 Kg / 25 N, 110V
845.00
M4-5 Advanced Digital Force Gauge with Output, Cap. 5 lbf / 2.5 Kg / 25 N, 220V
845.00
M4-50 Advanced Digital Force Gauge with Output, Cap. 50 lbf / 25 Kg / 250 N, 110V
845.00
M4-50 Advanced Digital Force Gauge with Output, Cap. 50 lbf / 25 Kg / 250 N, 220V
845.00
M4-500 Advanced Digital Force Gauge with Output, Cap. 500 lbf / 250 Kg / 2500 N, 110V
995.00
M4-500 Advanced Digital Force Gauge with Output, Cap. 500 lbf / 250 Kg / 2500 N, 220V
995.00

Series 5 Advanced Digital Force Gage
Series 5 Advanced Digital Force Gage
Price: $ 1,095.00 up to $ 1,495.00
Digital Force Gage with USB, RS-232, Mitutoyo, and analog outputs
7,000 Hz peak sampling rate
0.1% accuracy
1,000 point data memory and statistics
Reversible display
The Series-5 Advanced Digital Force Gage is designed for tension and compression force testing in quality control, manufacturing, and R&D areas. A range of capacities from 0.12 lb to 500 lb (0.5 N to 2500 N) is available to address numerous applications in the medical device, pharmaceutical, packaging, consumer products, automotive, aerospace, and other industries.

The force gauges feature an industry-leading peak sampling rate of 7,000 Hz, producing accurate results even for quick-action tests. Accuracy is 0.1% of full scale 1 digit, and resolution is 1/5000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

The Series 5s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. The housing may be reversed in order for the load cell shaft to be oriented up or down, while the display and buttons remain upright.




Please click on the links below for additional information on the models available for this product:
Models Available Price
M5-012 Advanced Digital Force Gauge, Cap. 0.12 lbf / 50 G / 0.5 N, 110V
1,245.00
M5-012 Advanced Digital Force Gauge, Cap. 0.12 lbf / 50 G / 0.5 N, 220V
1,245.00
M5-025 Advanced Digital Force Gauge, Cap. 0.25 lbf / 100 G / 1 N, 110V
1,245.00
M5-025 Advanced Digital Force Gauge, Cap. 0.25 lbf / 100 G / 1 N, 220V
1,245.00
M5-05 Advanced Digital Force Gauge, Cap. 0.5 lbf / 250 G / 2.5 N, 110V
1,245.00
M5-05 Advanced Digital Force Gauge, Cap. 0.5 lbf / 250 G / 2.5 N, 220V
1,245.00
M5-10 Advanced Digital Force Gauge, Cap. 10 lbf / 5 Kg / 50 N, 110V
1,095.00
M5-10 Advanced Digital Force Gauge, Cap. 10 lbf / 5 Kg / 50 N, 220V
1,095.00
M5-100 Advanced Digital Force Gauge, Cap. 100 lbf / 50 Kg / 500 N, 110V
1,095.00
M5-100 Advanced Digital Force Gauge, Cap. 100 lbf / 50 Kg / 500 N, 220V
1,095.00
M5-1000 Advanced Digital Force Gauge, Cap. 1000 lbf / 500 Kg / 5000 N, 110V
1,495.00
M5-1000 Advanced Digital Force Gauge, Cap. 1000 lbf / 500 Kg / 5000 N, 220V
1,495.00
M5-2 Advanced Digital Force Gauge, Cap. 2 lbf / 1 Kg / 10 N, 110V
1,095.00
M5-2 Advanced Digital Force Gauge, Cap. 2 lbf / 1 Kg / 10 N, 220V
1,095.00
M5-20 Advanced Digital Force Gauge, Cap. 20 lbf / 10 Kg / 100 N, 110V
1,095.00
M5-20 Advanced Digital Force Gauge, Cap. 20 lbf / 10 Kg / 100 N, 220V
1,095.00
M5-200 Advanced Digital Force Gauge, Cap. 200 lbf / 100 Kg / 1000 N, 110V
1,245.00
M5-200 Advanced Digital Force Gauge, Cap. 200 lbf / 100 Kg / 1000 N, 220V
1,245.00
M5-5 Advanced Digital Force Gauge, Cap. 5 lbf / 2.5 Kg / 25 N, 110V
1,095.00
M5-5 Advanced Digital Force Gauge, Cap. 5 lbf / 2.5 Kg / 25 N, 220V
1,095.00
M5-50 Advanced Digital Force Gauge, Cap. 50 lbf / 25 Kg / 250 N, 110V
1,095.00
M5-50 Advanced Digital Force Gauge, Cap. 50 lbf / 25 Kg / 250 N, 220V
1,095.00
M5-500 Advanced Digital Force Gauge, Cap. 500 lbf / 250 Kg / 2500 N, 110V
1,245.00
M5-500 Advanced Digital Force Gauge, Cap. 500 lbf / 250 Kg / 2500 N, 220V
1,245.00

Series-2 Economical Digital Force Gauge
Series-2 Economical Digital Force Gauge
Price: $ 415.00
Basic Digital Force Gauge

Measures Push and Pull Force

0.5% accuracy

3 Year Warranty
The Series-2 is designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges' 0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.

The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments.


Please click on the links below for additional information on the models available for this product:
Models Available Price
M2-10 Economical Digital Force Gauge, Capacity 10 lbF / 5 kgF / 50 N
415.00
M2-100 Economical Digital Force Gauge, Capacity 100 lbF / 50 kgF / 500 N
415.00
M2-2 Economical Digital Force Gauge, Capacity 2 lbF / 1 kgF / 10 N
415.00
M2-20 Economical Digital Force Gauge, Capacity 20 lbF / 10 kgF / 100 N
415.00
M2-5 Economical Digital Force Gauge, Capacity 5 lbF / 2.5 kgF / 25 N
415.00
M2-50 Economical Digital Force Gauge, Capacity 50 lbF / 25 kgF / 250 N
415.00

Series-3 Digital Force Gauge
Series-3 Digital Force Gauge
Price: $ 650.00 up to $ 800.00
Digital Force Gauge
2,000 Hz peak sampling rate
0.3% accuracy
3 Year Warranty

The Series 3 digital force gauge is designed for measuring tension and compression (push & pull) force testing in numerous applications. The gauges feature a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges features and configurable parameters. USB output (non-streaming) is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with a wide range of test stands, grips, and software.

The gauges include MESUR Lite data acquisition software. MESUR Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.



Please click on the links below for additional information on the models available for this product:
Models Available Price
M3-012 Digital Force Gauge Complete Kit, Cap. 0.12 lbf / 50 G / 0.05 N, 110V
800.00
M3-012 Digital Force Gauge Complete Kit, Cap. 0.12 lbf / 50 G / 0.05 N, 220V
800.00
M3-025 Digital Force Gauge Complete Kit, Cap. 0.25 lbf / 100 G / 1 N, 110V
800.00
M3-025 Digital Force Gauge Complete Kit, Cap. 0.25 lbf / 100 G / 1 N, 220V
800.00
M3-05 Digital Force Gauge Complete Kit, Cap. 0.5 lbf / 250 G / 2.5 N, 110V
800.00
M3-05 Digital Force Gauge Complete Kit, Cap. 0.5 lbf / 250 G / 2.5 N, 220V
800.00
M3-10 Digital Force Gauge Complete Kit, Cap. 10 lbf / 5 Kg / 50 N, 110V
650.00
M3-10 Digital Force Gauge Complete Kit, Cap. 10 lbf / 5 Kg / 50 N, 220V
650.00
M3-100 Digital Force Gauge Complete Kit, Cap. 100 lbf / 50 Kg / 500 N, 110V
650.00
M3-100 Digital Force Gauge Complete Kit, Cap. 100 lbf / 50 Kg / 500 N, 220V
650.00
M3-2 Digital Force Gauge Complete Kit, Cap. 2 lbf / 1 Kg / 10 N, 110V
650.00
M3-2 Digital Force Gauge Complete Kit, Cap. 2 lbf / 1 Kg / 10 N, 220V
650.00
M3-20 Digital Force Gauge Complete Kit, Cap. 20 lbf / 10 Kg / 100 N, 110V
650.00
M3-20 Digital Force Gauge Complete Kit, Cap. 20 lbf / 10 Kg / 100 N, 220V
650.00
M3-200 Digital Force Gauge Complete Kit, Cap. 200 lbf / 100 Kg / 1000 N, 110V
800.00
M3-200 Digital Force Gauge Complete Kit, Cap. 200 lbf / 100 Kg / 1000 N, 220V
800.00
M3-5 Digital Force Gauge Complete Kit, Cap. 5 lbf / 2.5 Kg / 25 N, 220V
650.00
M3-5 Digital Force Gauge Complete Kitt, Cap. 5 lbf / 2.5 Kg / 25 N, 110V
650.00
M3-50 Digital Force Gauge Complete Kit, Cap. 50 lbf / 25 Kg / 250 N, 110V
650.00
M3-50 Digital Force Gauge Complete Kit, Cap. 50 lbf / 25 Kg / 250 N, 220V
650.00
M3-500 Digital Force Gauge Complete Kit, Cap. 500 lbf / 250 Kg / 2500 N, 110V
800.00
M3-500 Digital Force Gauge Complete Kit, Cap. 500 lbf / 250 Kg / 2500 N, 220V
800.00

Series-3I Force and Torque Indicator
Series-3I Force and Torque Indicator
Price: $ 575.00
Remote Sensor Force / Torque Display

2,000 Hz sampling rate

0.2% accuracy

USB output
The 3i is designed to work with a wide range of Mark-10 remote force and torque sensors (see page 3). With exclusive Plug & Test technology, all calibration and configuration data is saved within the sensors smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force / torque indicator.

The 3i shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.

The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.



Please click on the links below for additional information on the models available for this product:
Models Available Price
M3I Digital Force / Torque Indicator, 110V
575.00
M3IA Digital Force / Torque Indicator, 220V Australia
575.00
M3IE Digital Force / Torque Indicator, 220V Europe
575.00
M3IU Digital Force / Torque Indicator, 220V UK
575.00

Series-5I Advanced Force / Torque Indicator
Series-5I Advanced Force / Torque Indicator
Price: $ 875.00
Advanced Digital Force Gauge with USB Ouput & Software

7,000 Hz sampling rate

0.1% accuracy

1,000 point data memory and statistics

USB, RS-232, Mitutoyo, and analog outputs
The 5i advanced digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors (see below). With exclusive Plug & TestTM technology, all calibration and configuration data is saved within the sensors smart connector, not the indicator, allowing for true interchangeability. Sensor password protection prevents use of an unauthorized sensor. In addition, all sensors are fully compatible with the more basic 3i force / torque indicator.
The 5i shares its menu structure and most specifications with Series 5 digital force gauges. The sampling rate is a blazing fast 7,000 Hz, producing accurate results even for quick-action tests. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the indicators many features and configurable parameters. Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. An analog load bar is shown on the display for graphical representation of applied force or torque.

The 5is averaging mode addresses the need to record the average load over time, while external trigger mode makes switch activation testing simple and accurate.

The 5i includes MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data saved in the indicators memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.





Please click on the links below for additional information on the models available for this product:
Models Available Price
M5I Force and Torque Indicator, 110V
875.00
M5IA Force and Torque Indicator, 220V Australia Plug
875.00
M5IE Force and Torque Indicator, 220V European Plug
875.00
M5IU Force and Torque Indicator, 220V UK Plug
875.00

Series-7 Professional Digital Force Gauge
Series-7 Professional Digital Force Gauge
Price: $ 1,595.00 up to $1,745.00
Professional Digital Force Gauge with USB Ouput & Software

14,000 Hz peak sampling rate

Continuous data capture with 5,000-data point buffer and bulk output

0.1% accuracy
The Series 7 is designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbF (2500 N). The gauges feature 0.1% accuracy and a blazingly fast, industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests.

Series 7 gauges include all the functions of Series 5 gauges, with several additional features, including high speed continuous data capture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The gauges also feature programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. Series 7 includes a coefficient of friction unit of measurement and user-defined unit of measurement. For productivity enhancement, the gauges also feature automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection.

Series 7 force gauges are directly compatible with our ESM301 test stand, to permit functions such as break testing, tensile testing, compression testing, dynamic load holding, PC control capability, and many other applications.




Please click on the links below for additional information on the models available for this product:
Models Available Price
M7-012 Professional Digital Force Gauge with USB Ouput & Software, 0.12 lbF / 2 ozF, 110V
1,745.00
M7-012 Professional Digital Force Gauge with USB Ouput & Software, 0.12 lbF / 2 ozF, 220V
1,745.00
M7-025 Professional Digital Force Gauge with USB Ouput & Software, 0.25 lbF / 4 ozF, 110V
1,745.00
M7-025 Professional Digital Force Gauge with USB Ouput & Software, 0.25 lbF / 4 ozF, 220V
1,745.00
M7-05 Professional Digital Force Gauge with USB Ouput & Software, 0.5 lbF / 8 ozF, 110V
1,745.00
M7-05 Professional Digital Force Gauge with USB Ouput & Software, 0.5 lbF / 8 ozF, 220V
1,745.00
M7-10 Professional Digital Force Gauge with USB Ouput & Software, 10 lbF / 160 ozF, 110V
1,595.00
M7-10 Professional Digital Force Gauge with USB Ouput & Software, 10 lbF / 160 ozF, 220V
1,595.00
M7-100 Professional Digital Force Gauge with USB Ouput & Software, 100 lbF / 1600 ozF, 110V
1,595.00
M7-100 Professional Digital Force Gauge with USB Ouput & Software, 100 lbF / 1600 ozF, 220V
1,595.00
M7-2 Professional Digital Force Gauge with USB Ouput & Software, 2 lbF / 32 ozF, 110V
1,595.00
M7-2 Professional Digital Force Gauge with USB Ouput & Software, 2 lbF / 32 ozF, 220V
1,595.00
M7-20 Professional Digital Force Gauge with USB Ouput & Software, 20 lbF / 320 ozF, 110V
1,595.00
M7-20 Professional Digital Force Gauge with USB Ouput & Software, 20 lbF / 320 ozF, 220V
1,595.00
M7-200 Professional Digital Force Gauge with USB Ouput & Software, 200 lbF / 3200 ozF, 110V
1,745.00
M7-200 Professional Digital Force Gauge with USB Ouput & Software, 200 lbF / 3200 ozF, 220V
1,745.00
M7-5 Professional Digital Force Gauge with USB Ouput & Software, 5 lbF / 80 ozF, 110V
1,595.00
M7-5 Professional Digital Force Gauge with USB Ouput & Software, 5 lbF / 80 ozF, 220V
1,595.00
M7-50 Professional Digital Force Gauge with USB Ouput & Software, 50 lbF / 800 ozF, 110V
1,595.00
M7-50 Professional Digital Force Gauge with USB Ouput & Software, 50 lbF / 800 ozF, 220V
1,595.00
M7-500 Professional Digital Force Gauge with USB Ouput & Software, 500 lbF / 8000 ozF, 110V
1,745.00
M7-500 Professional Digital Force Gauge with USB Ouput & Software, 500 lbF / 8000 ozF, 220V
1,745.00

Series-7i Professional Force and Torque Indicator
Series-7i Professional Force and Torque Indicator
Price: $ 1,425.00
Professional Digital Force Gauge with USB Ouput & Software

14,000 Hz sampling rate

Continuous/single data point capture for 5,000 readings, with statistics

Footswitch command string

Break detection and auto output/zero

Thread Adapters for Digital Force Gauges
Thread Adapters for Digital Force Gauges
Price:$15.00 to $20.00
Connect force gauges and attachments with different thread sizes. Use them with a force gauge and a test stand to create a complete testing system.

Z2 Digital Force Gage
Z2 Digital Force Gage
The Z2 has been replaced by the ZT Series
Programmable Digital Force Gaugewith Output
0.2%
7 Ranges up to 220 lbs
RS-232C, Digimatic and Analog outputs
Reversible display

The new Check-Line model Z2 Digital Force Gage is a high performance force gauge which offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint. Store up to 1000 values in memory, which can be transmitted using the Digimatic or serial output ports. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons.

Connect a Z2 force gauge with an MX Series test stand and enable force controlled testing. Force control can automatically stop testing when the force value reaches the high setpoint programmed on the Z2 force gauge, or maintain the force between the Z2 High and Low setpoints. Force control is ideal for fatigue or non-destructive testing.




Please click on the links below for additional information on the models available for this product:
Models Available Price

Z2S-DPU Programmable, Digital Force Gauge with Remote Sensor
Z2S-DPU Programmable, Digital Force Gauge with Remote Sensor
Has Been Replaced by the ZT-DPU Model
Remote Sensor Digital Force Gauge with Output
Accuracy 0.5%
11 Ranges up to 4,400 lbs
Measure force in lbs, Kgs or N

The Z2S-DPU Digital Force Gageis ahigh performance Digital Force Gauge that features a separate sensor that is ideal for confined spaces or difficult to reach measurements. All standard sensors are good for both compression and tension. A standard six foot cable connects the gauge to the sensor. The Z2S-DPU unit offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1,000 values in memory, which can be displayed or transmitted using the serial, or optional USB output port. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf or Newtons.



Please click on the links below for additional information on the models available for this product:
Models Available Price

Z2S-LM Remote Compression Sensor Digital Force Gauge with Output
Z2S-LM Remote Compression Sensor Digital Force Gauge with Output
Price: $ 1,465.00 up to $ 1,775.00
Has Been Replaced by the ZT-DPU Model
Remote Compression Sensor Digital Force Gauge with Output
Accuracy 0.5%
11 Ranges up to 4,400 lbs
Measure force in lbs, Kgs or N

The Z2S-LM Digital Force Gage is ahigh performance digital force gauges that feature a separate sensor that is designed for measuring compression. A standard six foot cable connects the gauge to the sensor. The Z2S-LM unit offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1,000 values in memory, which can be displayed or transmitted using the serial, or optional USB output port. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons.



Please click on the links below for additional information on the models available for this product:
Models Available Price

ZP Digital Force Gage with USB Output
ZP  Digital Force Gage with USB Output

The ZP has been replaced by the ZT Series


Programmable Digital Force Gauge with USB Output
Accuracy 0.2%
7 Ranges up to 220 lbs
USB, RS-232C, Digimatic and Analog outputs
Reversible display

The ZP is capable of processing 1,000 data/second, so force profiles can be analyzed for much more than just the peak. Collect peak data on your computer with the USB cable and ZP Logger (included) or 1,000 data/second with ZP Recorder (optional). ZP digital force gauges have programmable high/low setpoints for go/no-go testing. Orange lights up for measurements less than Low setpoint, green for between High and Low setpoint, and red for over High setpoint.

Use real time mode to display load transients, or peak mode to capture the peak force achieved during a test. Selectable lbf, kgf, or Newtons measuring units.

Store up to 1,000 values in memory and download to your computer using USB or RS-232C output.



Please click on the links below for additional information on the models available for this product:
Models Available Price

ZP Recorder Force Data Analysis Software
ZP Recorder Force Data Analysis Software
Price: $ 360.00
Data Acquisition Software for ZP & ZPH
Force Data Analysis Software
Process 1000 data/second not just peak
Zoom in to examine important details
Generate statistics for all or part of the graph

The ZP Recorder force data analysis software is designed to interface with Imada ZP and ZPH Series (USB) force gauges to record and process the 1,000 data per second transmitted by the gauge. Each data point incorporates both a force and time value, so force profiles can be analyzed for much more than just the peak. Set units of measurement and zero the gauge from the software. Record in either Manual or Automatic modes. Automatic mode can be configured to save data for both destructive and nondestructive testing.

Force Data Analysis ToolsThe recorded data is displayed as a graph and statistics are automatically generated. Zoom into any part of the graph to examine individual data points at intervals of 1mS. Mouse over any data points to display the force and time values. Further data analysis can be done by selecting part of the graph to generate statistics for that time interval. Detect the first peak for a specific threshold for the whole graph or just a part of it. Compare and align multiple graphs which are color-coded for clear display. Save graphs or export data to CSV format.

ZP Recorder offers new tools to users requiring the latest advancements in force data analysis.

Hardware/Software Minimum Requirements PC: Pentium II 400MHz or equivalent with USB port Operating System: Microsoft Windows NT, 2000, XP Gauge: ZP, ZPH and ZPS



Please click on the links below for additional information on the models available for this product:
Models Available Price
ZP Recorder Force Data Analysis Software
360.00

ZPH High Capacity Digital Force Gage with USB Output
ZPH High Capacity Digital Force Gage with USB Output

The ZPH has been replaced by the ZT Series


High Capacity Programmable Digital Force Gauge with USB Output
Accuracy: 0.2%
2 ranges up to 1100 lbs
USB, RS-232C, Digimatic and Analog outputs

The ZPH digital force gaugeis capable of processing 1,000 data/second, so force profiles can be analyzed for much more than just the peak. Collect peak data on your computer with the USB cable and ZP Logger (included) or 1,000 data/second with ZP Recorder (optional). Main Features ZPH gauges have programmable high/low setpoints for go/no-go testing. Orange lights up for measurements less than Low setpoint, green for between High and Low setpoint, and red for over High setpoint.

Use real time mode to display load transients, or peak mode to capture the peak force achieved during a test. Selectable lbf, kgf, or Newtons measuring units.

Store up to 1,000 values in memory and download to your computer using USB or RS-232C output.



Please click on the links below for additional information on the models available for this product:
Models Available Price

ZT-DPU-Series Digital Force Gauge with Remote Sensor
ZT-DPU-Series Digital Force Gauge with Remote Sensor
Price: $ 1,125.00 up to $ 1,625.00
Remote Sensor Digital Force Gaugewith Output
Accuracy 0.2%
11 Ranges up to 4,400 lbs
Measure force in lbs, Kgs or N
The Z2S-DPU is ahigh performance digital force gauges that feature a separate sensor that is ideal for confined spaces or difficult to reach measurements. All standard DPU sensors are good for both compression and tension. A standard six foot cable connects the gauge to the sensor. The Z2S-DPU unit offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.Store up to 1,000 values in memory, which can be displayed or transmitted using the RS-232C port. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons

Please click on the links below for additional information on the models available for this product:
Models Available Price
ZTA-DPU-0.4 ELD Advanced Digital Force Gauge Complete Kit - 7 ozf Capacity
1,325.00
ZTA-DPU-1 ELD Advanced Digital Force Gauge Complete Kit - 18 ozf Capacity
1,325.00
ZTA-DPU-11 ELD Advanced Digital Force Gauge Complete Kit - 11 lbf Capacity
1,325.00
ZTA-DPU-110 ELD Advanced Digital Force Gauge Complete Kit - 110 lbf Capacity
1,325.00
ZTA-DPU-220 ELD Advanced Digital Force Gauge Complete Kit - 220 lbf Capacity
1,525.00
ZTA-DPU-2200 ELD Advanced Digital Force Gauge Complete Kit - 2200 lbf Capacity
1,625.00
ZTA-DPU-4 ELD Advanced Digital Force Gauge Complete Kit - 4.4 lbf Capacity
1,325.00
ZTA-DPU-44 ELD Advanced Digital Force Gauge Complete Kit - 44 lbf Capacity
1,325.00
ZTA-DPU-4400 ELD Advanced Digital Force Gauge Complete Kit - 4400 lbf Capacity
1,625.00
ZTA-DPU-550 ELD Advanced Digital Force Gauge Complete Kit - 550 lbf Capacity
1,525.00
ZTS-DPU-0.4 ELD Digital Force Gauge Complete Kit - 7 ozf Capacity
1,125.00
ZTS-DPU-1 ELD Digital Force Gauge Complete Kit - 18 ozf Capacity
1,125.00
ZTS-DPU-11 ELD Digital Force Gauge Complete Kit - 11 lbf Capacity
1,125.00
ZTS-DPU-110 ELD Digital Force Gauge Complete Kit - 110 lbf Capacity
1,125.00
ZTS-DPU-1100 ELD Digital Force Gauge Complete Kit - 1100 lbf Capacity
1,425.00
ZTS-DPU-220 ELD Digital Force Gauge Complete Kit - 220 lbf Capacity
1,425.00
ZTS-DPU-2200 ELD Digital Force Gauge Complete Kit - 2200 lbf Capacity
1,525.00
ZTS-DPU-4 ELD Digital Force Gauge Complete Kit - 4.4 lbf Capacity
1,125.00
ZTS-DPU-44 ELD Digital Force Gauge Complete Kit - 44 lbf Capacity
1,125.00
ZTS-DPU-4400 ELD Digital Force Gauge Complete Kit - 4400 lbf Capacity
1,525.00
ZTS-DPU-550 ELD Digital Force Gauge Complete Kit - 550 lbf Capacity
1,425.00

ZT-Series Digital Force Gauge
ZT-Series Digital Force Gauge
Price: $ 1,025.00 up to $ 1,490.00
1000lb Capacity Wire Pull Tester
Supplied with Heavy-Duty Wedge Grips
TheZT is a precision instrument thatprovides high performance and advanced functionality, being ideal for compression, peel testing and tension applications. The capacity of the ZT-series ranges from 2 to 1,000N, while the high accuracy and high sensitivity provide accurate results for quick-action testing. The excellent readability is due to the clear, highly bright display, while with the use of the multi-display users can indicate the peak values, time and all the measured values. The data logging software is included in the package, being able to acquire continuous data. The item can also be used for checking peak value, being able to calculate statistics automatically including the maximum and minimum values. The displacement indication feature and the force-displacement analysis is possible when combined with a test stand.

Please click on the links below for additional information on the models available for this product:
Models Available Price
ZTA ELD Advanced Digital Force Gauge Complete Kit - 11 lbf Capacity
1,125.00
ZTA ELD Advanced Digital Force Gauge Complete Kit - 110 lbf Capacity
1,125.00
ZTA ELD Advanced Digital Force Gauge Complete Kit - 220 lbf Capacity
1,235.00
ZTA ELD Advanced Digital Force Gauge Complete Kit - 4.4 lbf Capacity
1,125.00
ZTA ELD Advanced Digital Force Gauge Complete Kit - 44 lbf Capacity
1,125.00
ZTA-0.4 ELD Advanced Digital Force Gauge Complete Kit - 7 ozf Capacity
1,125.00
ZTA-1 ELD Advanced Digital Force Gauge Complete Kit - 18 ozf Capacity
1,125.00
ZTA-1100 ELD Advanced Digital Force Gauge Complete Kit - 1100 lbf Capacity (INCLUDES OH-1 HANDLE)
1,490.00
ZTA-550 ELD Advanced Digital Force Gauge Complete Kit - 550 lbf Capacity (INCLUDES OH-1 HANDLE)
1,335.00
ZTS-0.4 ELD Digital Force Gauge Complete Kit - 7 ozf Capacity
1,025.00
ZTS-1 ELD Digital Force Gauge Complete Kit - 18 ozf Capacity
1,025.00
ZTS-11 ELD Digital Force Gauge Complete Kit - 11 lbf Capacity
1,025.00
ZTS-110 ELD Digital Force Gauge Complete Kit - 110 lbf Capacity
1,025.00
ZTS-1100 ELD Digital Force Gauge Complete Kit - 1100 lbf Capacity (INCLUDES OH-1 HANDLE)
1,390.00
ZTS-220 ELD Digital Force Gauge Complete Kit - 220 lbf Capacity
1,135.00
ZTS-4 ELD Digital Force Gauge Complete Kit - 4.4 lbf Capacity
1,025.00
ZTS-44 ELD Digital Force Gauge Complete Kit - 44 lbf Capacity
1,025.00
ZTS-550 ELD Digital Force Gauge Complete Kit - 550 lbf Capacity (INCLUDES OH-1 HANDLE)
1,235.00



Powered by Marctin Web Architecture
