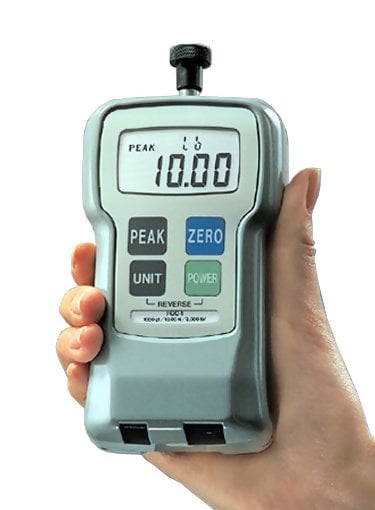

Shimpo FGE Hand-Held Digital Force Gage



Price: $ 0.00

Shimpo FGE Hand-Held Digital Force Gage
Accuracy 0.2%
8 Ranges up to 100lbs
Measure force in lbs, Kgs or N
Reversible display

FGE Standard Force Gauge
8 Ranges up to 100lbs

The microprocessor-controlled, digital FGE Digital Force Gauges precisely measure push/pull forces up to 100 pounds with an accuracy of 0.2%.

They are extremely compact for convenient hand-held use and include provisions for mounting on a test stand for bench top use.

Optional Handle for FGE / FGV Force Gauge. FG-HANDLE

force gauge handle

line
Features
line

  • Includes NIST Calibration Certificate
  • Accuracy 0.2%
  • User-selected units of Pounds, Kilograms or Newtons
  • Display can be reversed for inverted use
  • Display "real-time" or "peak" force
  • 200% overload protection
  • 1 Year Warranty

line

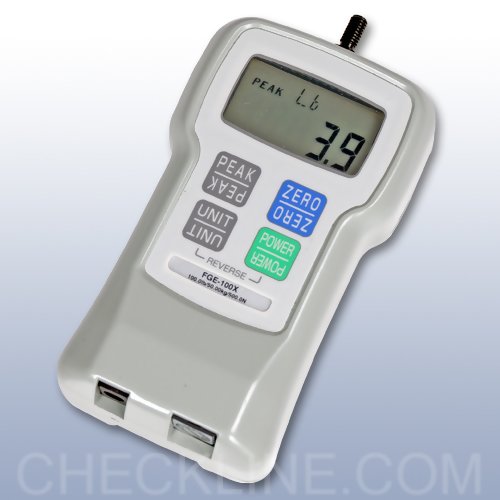

Photo Gallery
line

ABQ ABQ ABQ ABQ

line
Force Ranges
line

ModelCapacityResolution
FGE-0.5X
8.00 oz
200.0 g
2.000 N
0.01 oz
0.1 g
0.001 N
FGE-1X
16.00 oz
500.0 g
5.000 N
0.01 oz
0.1 g
0.001 N
FGE-2X
2.000 lb
1000 g
10.00 N
0.001 lb
1 g
0.01 N
FGE-5X
5.000 lb
2.000 Kg
20.00 N
0.001 lb
0.001 kg
0.01 N
FGE-10X
10.00 lb
5.000 Kg
50.00 N
0.01 lb
0.001 kg
0.01 N
FGE-20X
20.00 lb
10.00 Kg
100.0 N
0.01 lb
0.01 kg
0.1 N
FGE-50X
50.00 lb
20.00 Kg
200.0 N
0.01 lb
0.01 kg
0.1 N
FGE-100X
100.0 lb
50.00 Kg
500.0 N
0.1 lb
0.01 kg
0.1 N


line

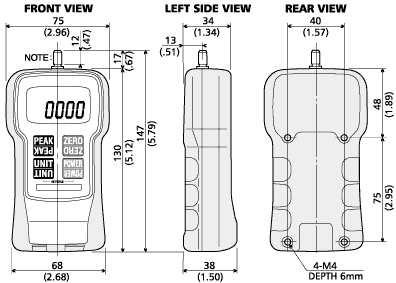

Dimensions
line

dimensions

Note:
FGE / FGV-0.5X & FGE / FGV-1X - Shaft thread is M4
FGE / FGV-2X & Over - Shaft thread is M6

line
Specifications
line

Accuracy0.2% full scale
Display4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate1000 times per second
Overload Protection200% of full scale
PowerRechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-OffYes (not active if adapter/charge is in use)
Battery Life12 hours (when fully charged)
Recharge TimeApproximately 18 hours when fully discharged
Dimensions5.1" L x 2.9" W x 1.5" H (130 mm x 75 mm x 38 mm)
Weight1 lb (450 g)
ApprovalsCE approved
Warranty1 Year


line
Related Products
line

MESURgauge
Mesurgauge Load & Travel Analysis Software

  • Sends data from a force or torque gauge and travel display to a PC for further analysis
related

line

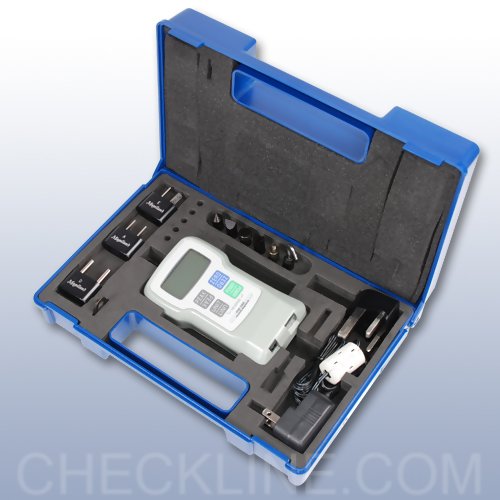

Complete Kit
line

Includes Force Gauge, AC Adapter/Charger, 6 Attachments;Hook, Flat Head, Notched Head, Hanger, cone head, extension rod, RS232 CABLE & Toriemon Software (FGV Only) in a foam fitted carrying case

complete kit

line

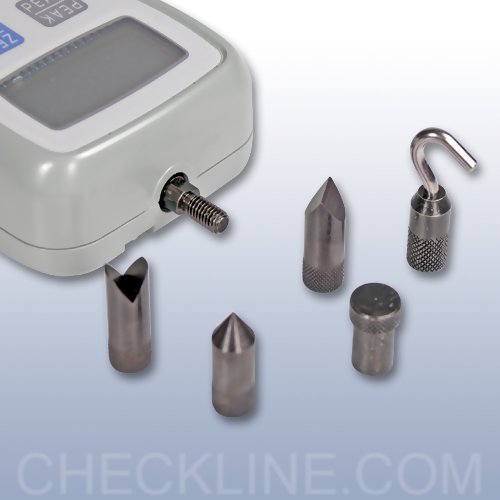

Standard Attachments
line

dimensions

line
Special Attachments
line

line
Downloads
line

Shimpo FGE Hand-Held Digital Force Gage - Data Sheet
Shimpo FGE Hand-Held Digital Force Gage - Instruction Manual
Shimpo FGE Hand-Held Digital Force Gage - Special Attachments
FGE Hand-Held Digital Force Gage - Toriemon Software for FGV

line
Buy Now
line


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Accessories Price
FG-HANDLE Handle for FGE / FGV $143.00
FG-09V120UC Spare / Replacement Power Adapter for FG Force Gauges $44.00
BATT-FGEX Spare / Replacement Internal Rechargeable NiCad Battery $66.00
FG-M6ADP Std. Steel Adapter Set, M6 Thread (Includes Chisel, Cone, Flat Head, Notched, Hook, Extension Rod) - For use with 2 - 20 lb force gauges $105.00
FG-M6ADP-AL Std. Aluminum Adapter Set, M6 Thread (Includes Chisel, Cone, Flat Head, Notched, Hook, Extension Rod) - For use with 2 - 200 lb force gauges $83.00
