FGV-0.5XY Digital Force Gauge with USB Out 0.5 lb Capacity
Price: $ 744.00
Digital Force Gage with USB Output
Reversible Keypad and Display
9 Ranges up to 200lbs
1000 Hz Sample Rate, provides more accurate results
USB, RS-232, Analog Outputs
FGV-XY Digital Force Gage with USB Output |
9 Ranges up to 200lbs The all new FGV-XY series force gauge delivers industry-leading value with an extensive list of features including USB output, reversible display and a rugged metal housing. Each gauge is supplied as a complete kit with several screw-on adapters providing a complete force testing instrument for use in a wide variety of industries. All models include built-in memory for 1000 values, easily downloaded via the USB data output to a PC using the software & cable supplied at no charge. Force values can be transferred in real time continuously or batch downloaded after testing is complete. In addition, RS-232C and analog outputs are also supplied providing the FGV-XY with maximum flexibility for data transfer and recording. Additionally, measurement statistics are automatically calculated and stored and can be recalled to the display for viewing or can be downloaded. Statistics include maximum, minimum, average and standard deviation. The FGV-XY provides is suitable for use in numerous industries & applications including incoming quality inspection, finished goods testing, R&D as well as on wire pull testing, wire crimps, trigger pull, brake pedal, aerospace, ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more. |
 Features of the FGV-XY Digital Force Gage  1000 Hz Sample Rate
captures true peak values even those occurring over very short time intervals
| Accuracy of 0.2%
providing superb repeatability | USB, RS-232 & Analog Outputs-- all included!
3 different outputs for data transfer provides maximum flexibility | 9 separate capacities from 0.5 Lb to 200 Lb
select the best range without forfeiting accuracy | 200% Overload Capacity
minimizes the likelihood of costly repairs | Rugged Die Cast Aluminum Housing & Rugged Construction
provides exceptional durability even in the toughest field applications | Reversible Display
optimized for use as both a handheld gauge or mount upside down on a test stand |
| Selectable Auto-Shut Off
prolongs battery life, while allowing constant use when powered via supplied AC-adapter | Small Size
Ergonomic design provides comfort for hand held testing | Automatic Calculation & Display of Statistics
provides immediate results and analysis of your force testing | 3 Memory Modes
optimize data storage for any application transferring data to PC/Laptop when convenient | Built In User-Set Hi-Lo Alarm Limits
perform quick and easy Go-No Go testing with visual LCD indicator when "out of tolerance" | Includes traceable calibration certificate (sample) |
|

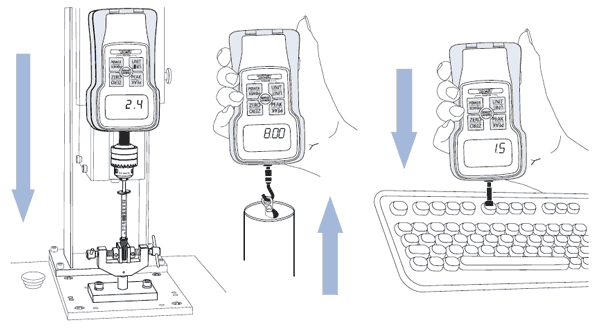

Photo Gallery for the FGV-XY Digital Force Gage - click any photo to enlarge
Force Ranges
| Model | Capacity | Resolution | | FGV-0.5XY | 0.5 lb
2 N
200 g
8 oz | 0.001 lb
0.001 N
0.1 g
0.01 oz | | FGV-1XY | 1 lb
5 N
500 g
16 oz | 0.001 lb
0.001 N
0.1 g
0.01 oz | | FGV-2XY | 2 lb
10 N
1000 g
32 oz | 0.001lb
0.01 N
1 g
0.01 oz | | FGV-5XY | 5 lb
20 N
2 kg | 0.001 lb
0.01 N
0.001 kg | | FGV-10XY | 10 lb
50 N
5 kg | 0.01 lb
0.01 N
0.001 kg | | FGV-20XY | 20 lb
100 N
10 kg | 0.01 lb
0.1 N
0.01 kg | | FGV-50XY | 50 lb
200 N
20 kg | 0.01 lb
0.1 N
0.01 kg | | FGV-100XY | 100 lb
500 N
50 kg | 0.1 lb
0.1 N
0.01 kg | | FGV-200XY | 200 lb
1000 N
100 kg | 0.1 lb
1 N
0.01 kg | | |
Complete Kit of the FGV-XY Digital Force Gage
| | | The FGV-XY is supplied as a complete kit including, gauge, AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable and instruction manual in a foam-fitted carrying case. |
 |
Standard Attachments
Related Products for the FGV-XY Digital Force Gage
|
FGS-100H
Manual Hand Wheel Operated Test Stand |  |
Versatile bottom mounting plate accepts standard and custom-made attachments | | | | _ |
|
FGS-200PV
E-Force Test Stand (200 lb capacity) |  |
Auto reverse for test modes Hands off operation, reduces errors, speeds tests | | | | _ |
|
FTS-X
Force Test System |  |
1000 Hz Sample Rate
captures true peak values even those occurring over very short time intervals Accuracy of 0.2%
providing superb repeatability | | |
Dimensionsof the FGV-XY Digital Force Gage
Specifications of the FGV-XY Digital Force Gage
| Measuring Modes | Realtime, Compression Peak, Tension Peak | | Display Update Rate | User Selectable: 1, 2, 3, 5, 10, 20 times per second | | Sampling Rate | 1000 times per second (1000Hz/1KHz) | | Accuracy | 0.2% F.S. | | Temperature Drift | Gain : 0.01% LOAD / Zero : 0.01% / R.C. / Drift of zero point can be cancelled with tracking function. | | Display | Main display: 4-digits 12mm high, Reversible
Units display: 3-digits 7mm high
Other display: "LO BAT"(Low Battery Voltage), "BAT"(Battery Charging), "OVR"(Overload), "Peak"(Peak Hold) | | Overload | 200% of Full Scale
On Model FGV-200XY: 150% F.S. | | Tracking | User Selectable (ON/OFF) | | USB Output | Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included). | | RS-232C Output | Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory. | | Analog Output | 1V, Accuracy is 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms | | Overload/Comparator Output | Open-collector output (Max DC30V/5mA). | | Power | Rechargeable Nickel hydride battery or AC adapter/charger. Usable while charging. | | Operating Time | Approximately 8 hours after a full charge. Charging Time: 16 Hours Max. | | Auto Power Off | Default is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter. | | Memory function | Continuous memory: 1000 data points, Single memory: 100 data points, Standard memory: 50 data points Statistics functions (max, minimum, peak, average, standard deviation) | | Comparator function | User Selectable: HI and LO | | Temperature range | 0 ~ 40 C (-32 ~ 104 F) | | Humidity range | 35 ~ 85% RH | | Dimensions | 147mm (L)x 75mm (W) x 38mm(H) | | Weight | Approx. 450g
On Model FGV-200XY: Approx. 500g | | Accessories(Included) | AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable | | Application Software | Application software (USB version): Available at www.shimpoinst.com/software for free. |
