CG500 High Capacity Digital Force Gauge



Price: $ 1,426.00

CG High Capacity Digital Force Gage
Discontinued - Replaced by Series 5 Force Gauge Model M5-1000
Accuracy 0.2%
2 Ranges up to 1000 lbs
External trigger for contact or switch testing and data capture
3 Year Warranty

CG High Capacity Digital Force Gauge


The Series CG High Capacity Digital Force Gauge is ideal for heavy duty spring testing, destructive testing, and other force measurement applications requiring up to 1,000 lb of tensile or compressive force. These force gauges include all the advanced features of the Series BG, and are housed in ultra-rugged reversible aluminum housings for years of use in laboratory or factory environments. Use the CG with a TSF Test Stand to create a complete spring testing solution.


line
reddot Features of the CG High Capacity Digital Force Gageline

bluedot RS-232, Mitutoyo and analog outputs

bluedot Automatic timed output on RS-232

bluedot Averaging mode for average readings over time

bluedot GCL-Gauge Control Language for full computer control

bluedot Dual set points with outputs

bluedot External trigger for contact or switch testing and data capture

bluedot Peak memory for tensile and compressive forces

bluedot General purpose I/O for external device control

bluedot Programmable analog and digital filters

bluedot Selectable units of measurement

bluedot Battery or AC operation

bluedot 3 Year Warranty


line
reddot Force Ranges
line

ModelCapacityResolution
CG-500500 lb
250 Kg
2500 N
0.2 lb
0.1 Kg
1 N
CG-10001000 lb
500 Kg
5000 N
0.5 lb
0.2 Kg
2 N


line
reddot Related Products for the CG High Capacity Digital Force Gageline


TSF
High Capacity Test Stand
related

bluedot Smooth hand wheel operation

bluedot Available in vertical and horizontal orientations.


_


MESURgauge
Mesurgauge Load & Travel Analysis Software
related

bluedot Sends data from a force or torque gauge and travel display to a PC for further analysis


_


DP-1VR
Mitutoyo SPC statistical processor/printer
related

bluedot Portable printer for use with force and torque gauges




line
reddot Complete Kit of the CG High Capacity Digital Force Gageline


Series CG force gauges are supplied as a complete kit in a cushioned carrying case with AC adapter/charger, user's manual, NIST-traceable certificate of calibration, and attachments (chisel, cone, V-groove, hook, flat, extension rod, and thread adapter).

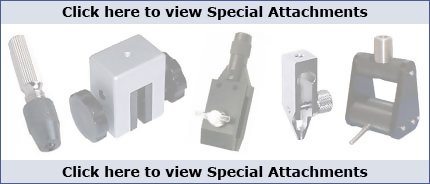

Special Attachments


line
reddot Specifications of the CG High Capacity Digital Force Gageline

Accuracy 0.2% of full scale 1 digit
Sampling rate65 readings/sec
Overload Protection150%
Battery life8-10 hours per charge
Weight1.8 lbs (0.8 kg)
Warranty3 year

line
reddot Download of the CG High Capacity Digital Force Gageline

manualDimensional Drawing Click here to download PDF

line
reddot Buy Now
line

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
CG500 High Capacity Digital Force Gauge $1,426.00
Accessories Price
09-1048 Cable, RS-232 25-Pin $72.00
15-004 Mesurgauge Load & Travel Analysis Software $476.00
